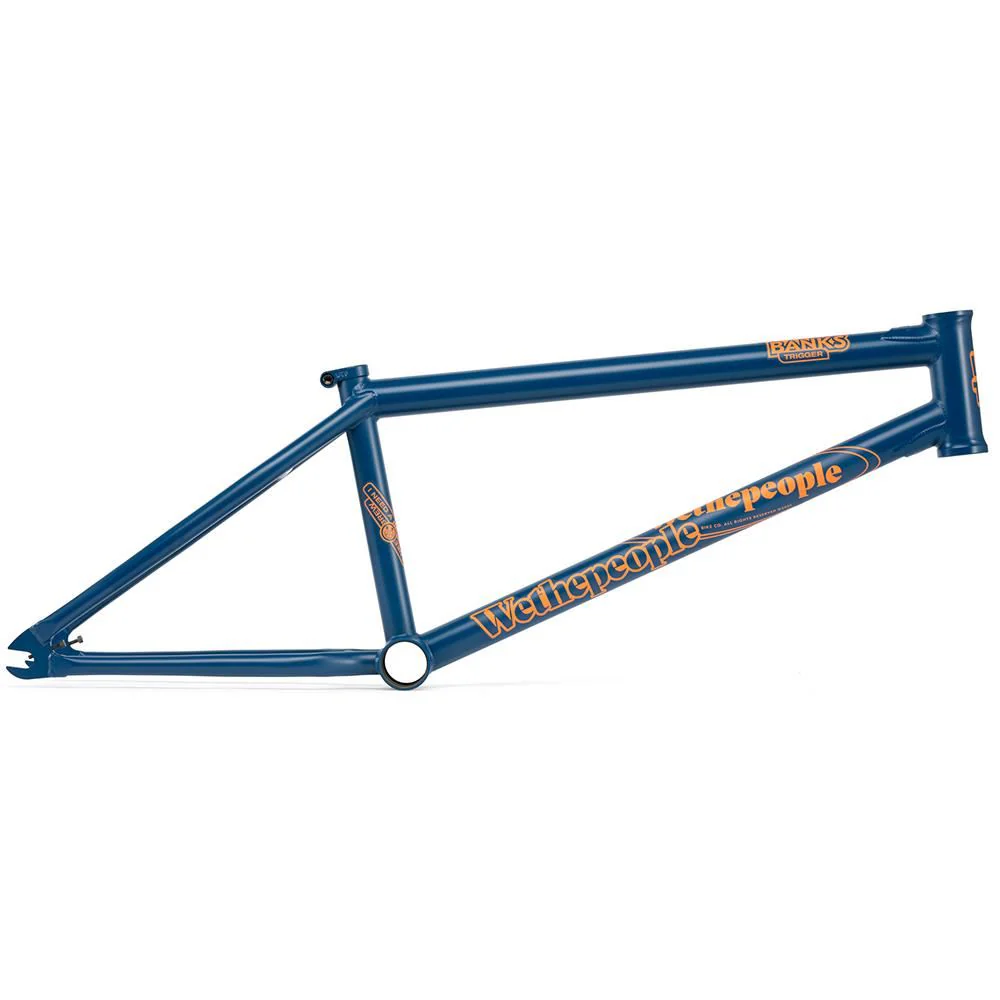

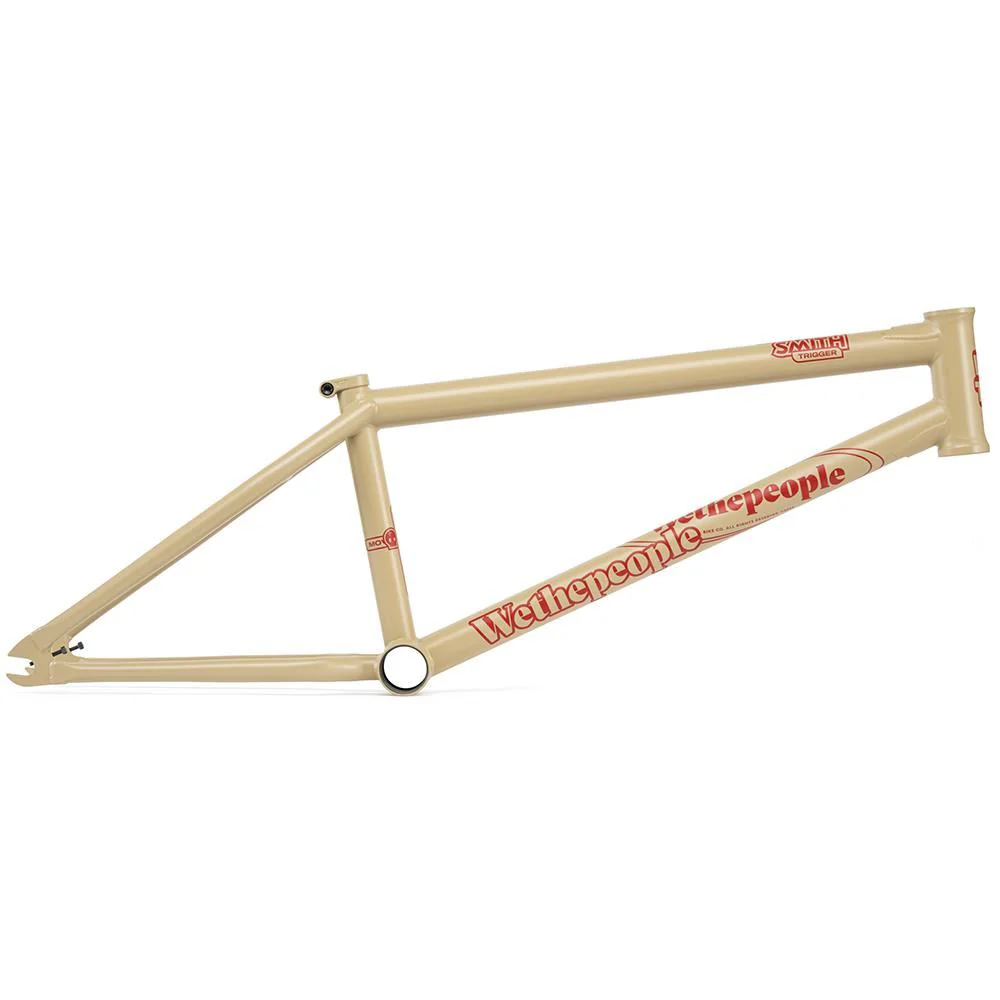

Wethepeople Trigger Frame

The Trigger frame features geometry which changes as the top tube length increases allowing the rider to be on a frame which suits them down to a tee. The smooth bottom bracket shell helps reduce drag or hang-ups on grinds, and the unique offset machined headtube allows for stronger junction and cleaner tube fitment where you need it the most.

###section###

Product Specs

1. MATERIAL: BUTTED, JAPANESE SEAMLESS 4130 CRMO TUBING
2. HEAD TUBE ANGLE: 75.75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.7" - 13" (20.5" & 20.75"), 12.95" - 13" (21"), 13.2" - 13.5" (21.25")
5. BB HEIGHT: 11.7"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 8.75" (20.5"), 9"(20.75"), 9.3" (21"), 9.6"(21.25")
8. DROPOUT SIZE:
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Brakeless
12. GYRO TABS: None
13. WEIGHT: 2.37KG (5.22LBS) - 20.75"

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• ADAPTIVE GEOMETRY (LONGER CHAIN STAYS AND HIGHER STANDOVER AS TOPTUBE LENGTH INCREASES)
• OFFSET MACHINED HEAD TUBE FOR IMPROVED TUBE FITMENT AND STRENGTH
• STEEPER 75.75° HEAD TUBE
